Basic Info.
Grid Type
off-Grid Inverter
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Color
Black, White or Customized
Input Voltage
130-280V or 160-260V
Battery Type
Lead-Acid, Lithium-Iron, Gel, Ternary and Customized
Transport Package
Brown Carton+Wood Pallet
Production Capacity
5000PCS/Month
Product Description

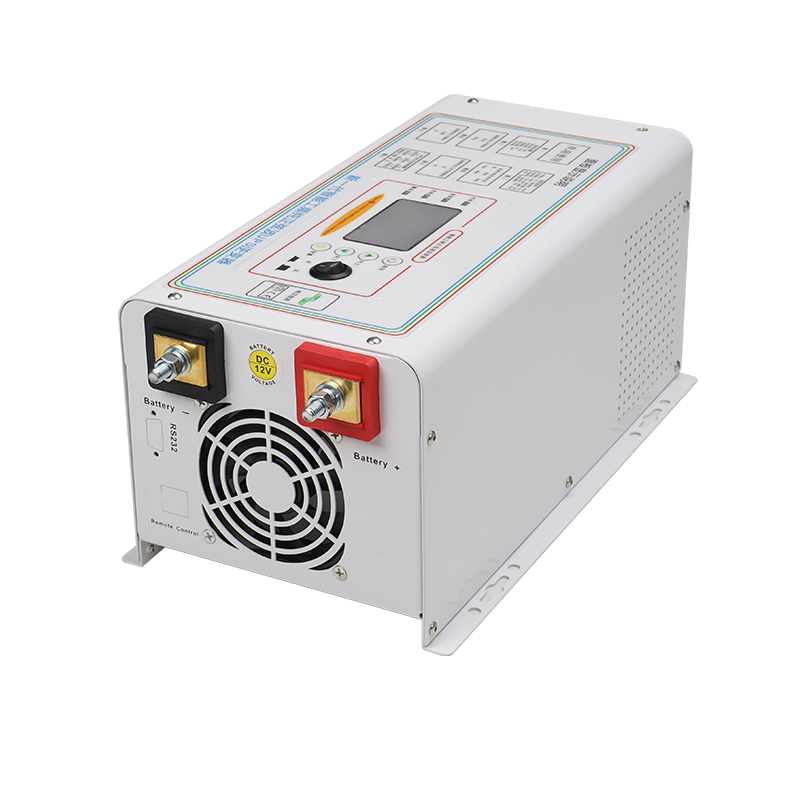

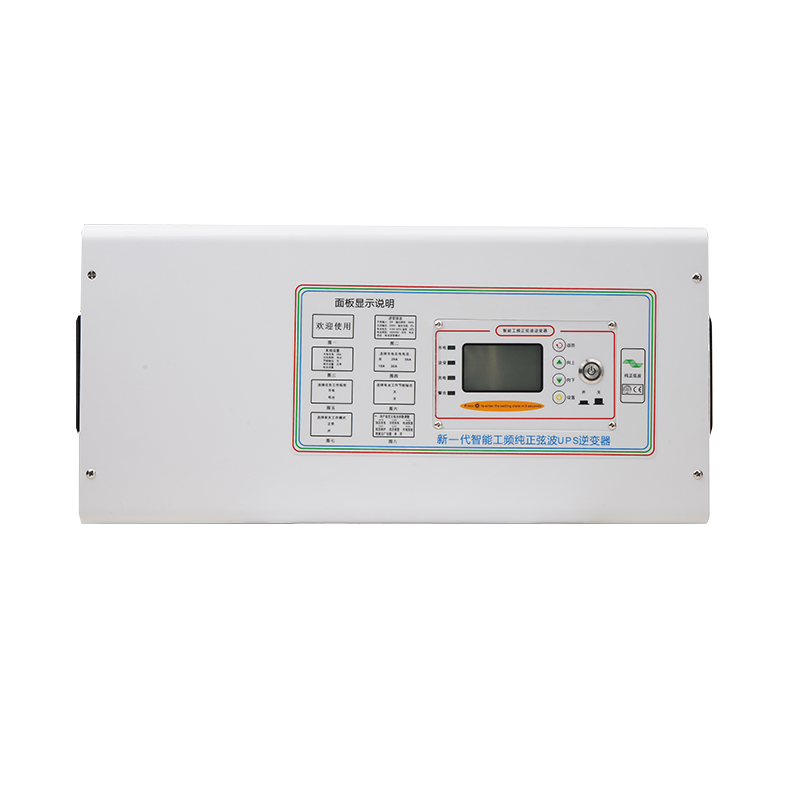

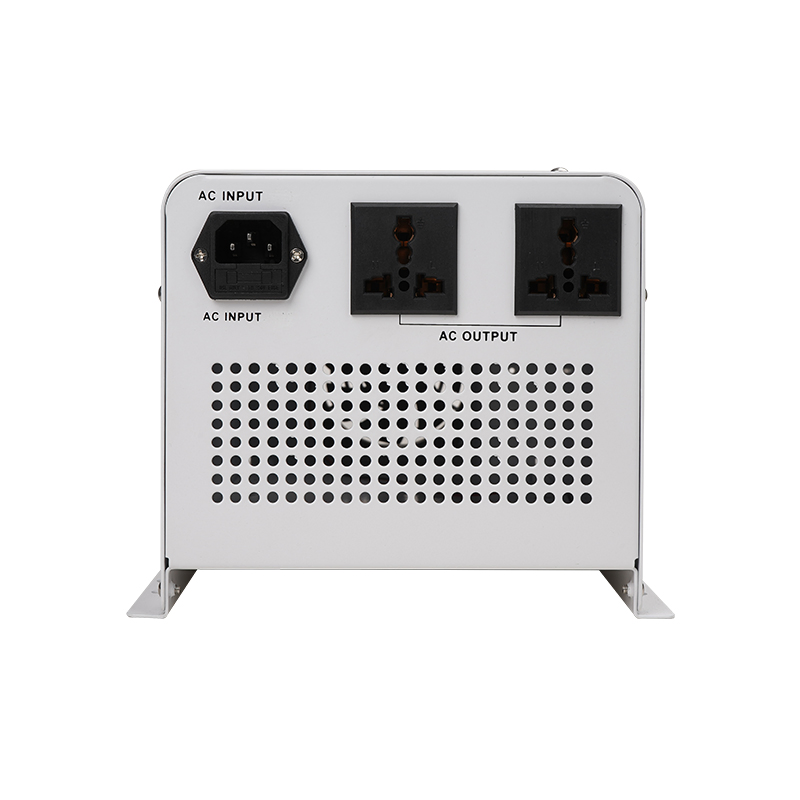

Topic: Hybrid Solar Power Inverter 2kw 3kw 4kw 5kw 10kw On/off Grid Tie Combined With Mppt Solar Charge Controller
Inverter Specifications:
| Model |
BR-IN-1000 |
BR-IN-1500 |
BR-IN-2000 |
BR-IN-3000 |
BR-IN-4000 |
BR-IN-5000 |
BR-IN-6000 |
BR-IN-7000 |
| Rated Power |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
7000W |
| Peak Power |
3000W |
4500W |
6000W |
9000W |
12000W |
15000W |
18000W |
21000W |
| Input |
Voltage |
Wide: 130V-280V / Narrow: 160V-260V (Optional) |
| Output Waveform |
Pure Sine Wave |
| Efficiency |
>85% |
| Battery Type |
Lead-acid, Lithium-iron, Gel, Ternary and Customized |
| Protection |
Overload, Short-circuit, Over-temperature, Battery Over/Low Voltage |
| Dimensions (mm) |
370*210*170 |
485*230*210 |
540*285*210 |

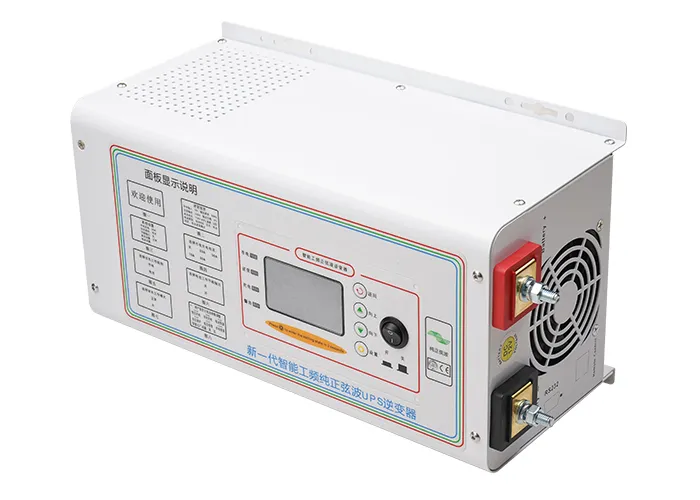

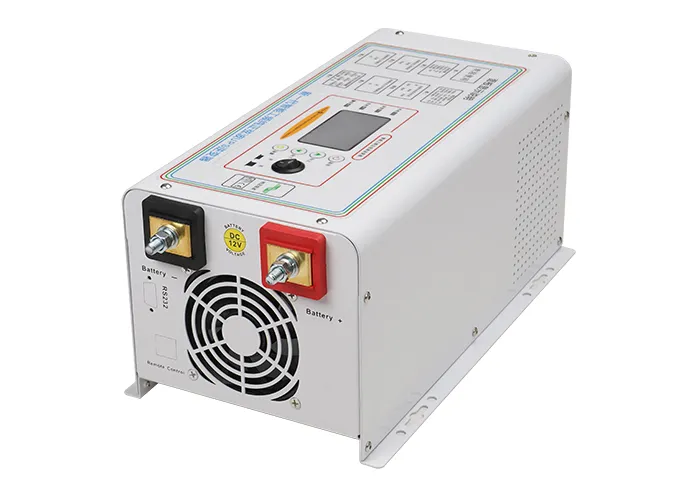

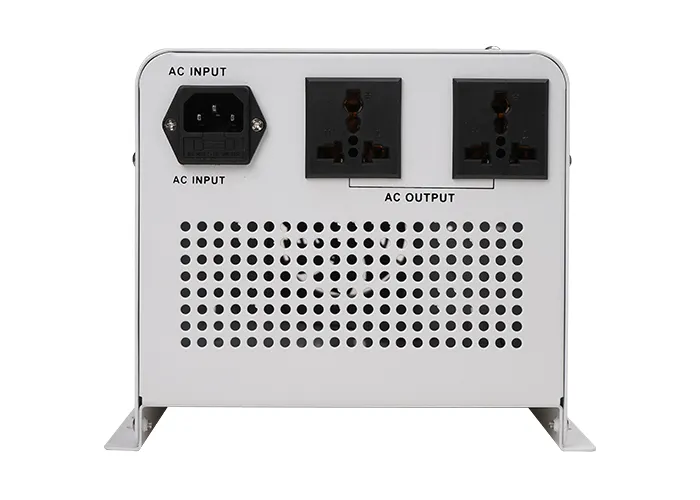

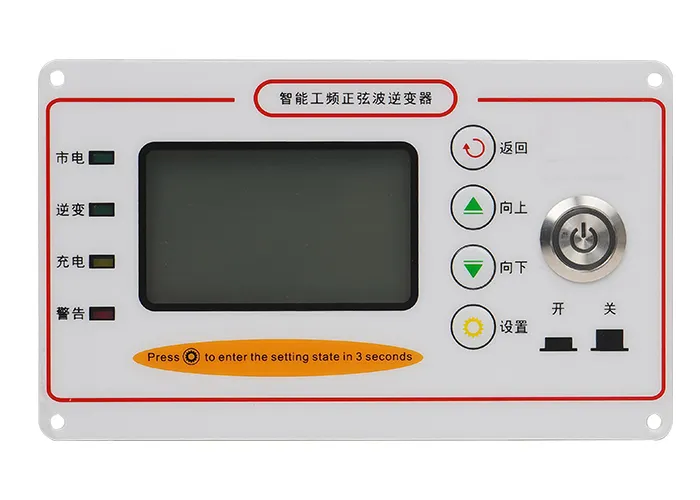

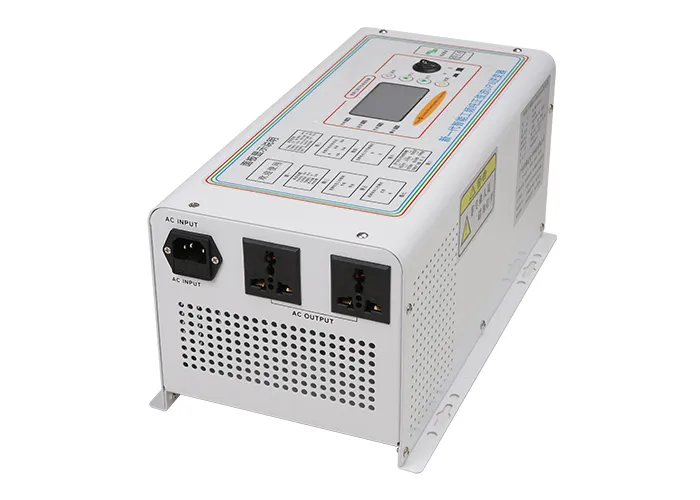

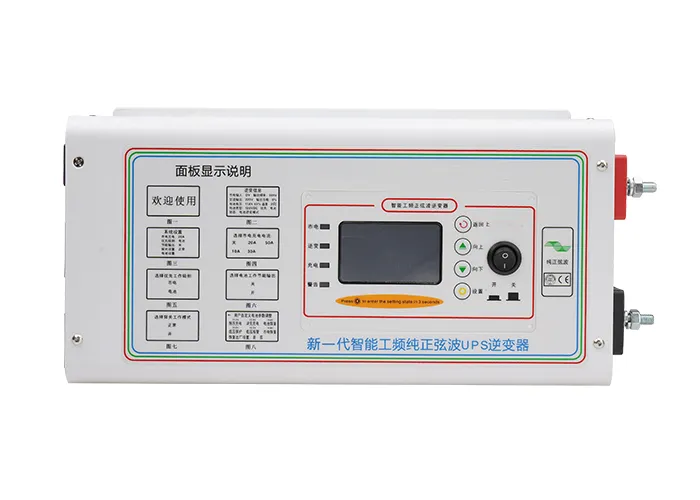

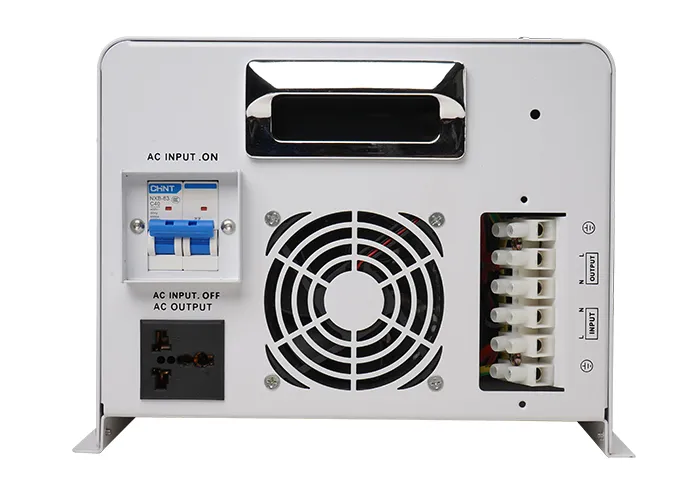

Product Gallery:
Frequently Asked Questions
What battery types are compatible with this inverter?
The inverter supports Lead-acid, Lithium-iron, Gel, Ternary batteries, and offers customized options for specific requirements.
What is the conversion time between mains and battery mode?
The typical conversion time is 5ms, ensuring an interactive and seamless transition for your electronics.
Does the inverter provide pure sine wave output?
Yes, it provides a pure sine wave output (AC 220V±3%), which is safe for sensitive electronic equipment.
What kind of protections are built into the system?
It includes comprehensive protection against overload, short-circuit, over-temperature, and over/low voltage for both battery and mains supply.
Can I monitor the inverter via a computer?

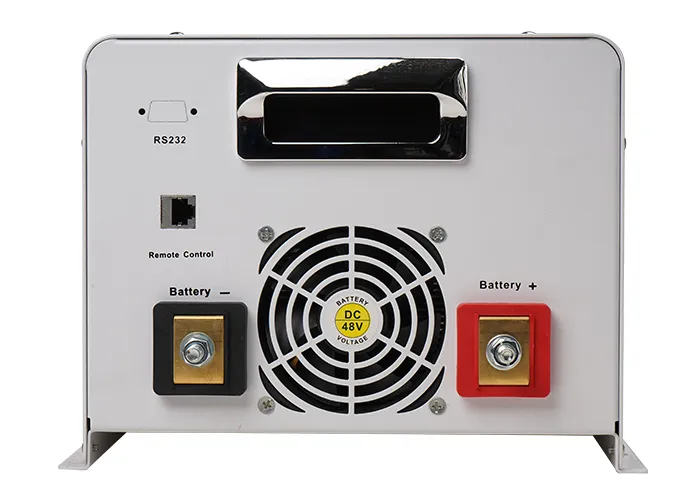

Yes, the inverter comes with an optional RS-232 communication interface for monitoring and management.
What is the peak power capacity of these models?
The peak power is designed to be 3 times the rated power (e.g., 3000W peak for a 1000W rated model) to handle high-startup current devices.
